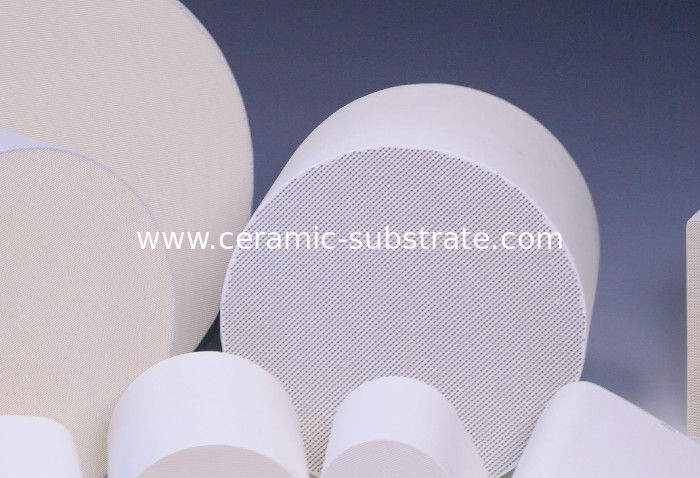

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust

  • লক্ষণীয় করা

    সিরামিক অনুঘটক রূপান্তরকারী

    ,

    সিরামিক অনুঘটক সমর্থন

    ,

    সাদা মধুচক্র সিরামিক সাবস্ট্রেট

  • কোষের ঘনত্ব
    100~600 CPSI
  • উপাদান
    কর্দিয়েরাইট
  • আকার
    কাস্টমাইজ করুন
  • রঙ
    সাদা
  • নাম
    কর্ডিয়েরাইট সাবস্ট্রেট|সিরামিক মধুচক্র|মৌচাক সিরামিক
  • আকৃতি
    গোলাকার
  • ব্যবহার
    গাড়ী অনুঘটক রূপান্তরকারী
  • Place of Origin
    China.Yixing
  • পরিচিতিমুলক নাম
    Yuxing
  • সাক্ষ্যদান
    ISO9001 TS/16949
  • Minimum Order Quantity
    NO
  • Packaging Details
    Standard export packing
  • Delivery Time
    5 work days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    6million liter/year

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust




Applications:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of this product has achieved advanced level in China, and it approaches or has already reached the advanced level of similar products abroad.





1.Product use

 After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.



2.Overall dimensions standards



Item

Standard value

Tolerance range

Remark

wall thickness

0.17MM

+0.03MM

-0.02MM



density scope

440g/L

±60g/L



Outside dimension

≤100MM

±1MM



>100MM

±1%



Perpendicularity

 ≤100MM

≤1%height



Parallelism

 >100MM

≤1%height





Physical and chemical properties



Item

Standard value

Inspection Method

chemical components

Al2O3

35.2±1%

Chemical analysis

SiO2

50.9±1%

MgO

13.9±1%

Cordierite Crystal phase

≥90%

X-ray diffraction techniques

Compressive

strength

AA xis

≥15 Mpa

Compressive strength technique

BA xis

≥2 Mpa

CA xis

≥0.15 Mpa

Water absorption

20-26%



Weighting methord

Softening point

≥1400

High temperature oven

CTE(800℃)

≤1.2*10-6/℃

Netzsch dil 402  PC

Thermal shock resistance

550℃three times(air cool)

Muffle furnace





Description:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro III and Euro IV.

Benefits of Products:

● Thin wall thickness

● Low pressure drop

● High surface area

● Height compressive strength

● Low thermal expansion coefficient

● Good thermal impact resistance and thermal shock resistance

● Excellent compatibility with various active composition in catalyst

●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.





Specifications



Cell density (CPSI):100~600



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

Φ76.2

4560

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 0

≤200

The height can be designed by customer

(The standard height):76.2mm(3”), 101.6mm(4”), 127mm(5”),

152.4mm(6”).

2

Φ83

5410

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 1

3

Φ93

6793

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 2

4

Φ97

7390

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 3

5

Φ101.6

8107

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 4

6

Φ103

8332

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 5

7

Φ105.7

8775

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 6

8

Φ118.4

11010

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 7

9

Φ144

16286

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 8

10

80x57(R21.5)

3546

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 9

11

99.5x68.1(R33.6)

5758

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 10

12

120.6x80(R39.6)

8227

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 11

13

144x68(R28.4)

8194

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 12

14

144.3x68.1(R28.4)

8606

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 13

15

144.8x81.3(R37)

9922

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 14

16

147x95(R36.6)

11010

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 15

17

148x84(R38)

10438

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 16

18

169.7x80.8(R37.2)

11865

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 17

19

Triangle

143.5×84

9108

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 18

20

Trapezium 112.2×92×152.4

8788

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 19

21

Trapezium

122.3x104.4

10336

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 20

22

Rectangle

119.5x99.5

10529

Honeycomb Ceramic / Catalyst Supports White For Vehicle Exhaust 21

23

Special

114x105

9612






REMARK: The SIZE can be designed by customer





Competitive Advantage:



● Thin wall thickness

● Low pressure drop

● High surface area

● Height compressive strength

● Low thermal expansion coefficient

● Good thermal shock resistance

● Excellent compatibility with various active composition in catalyst

●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.
